  • S-300 Wireless T, %RH, Water Sensor with 64K Reading Datalogging Memory, Accuracies ΔRH = ±1.8 %RH, ΔT = ±0.2 °C

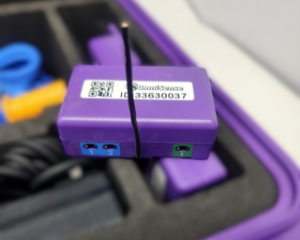

Picture of S-300 Wireless T, %RH, Water Sensor with 64K Reading Datalogging Memory, Accuracies ΔRH = ±1.8 %RH, ΔT = ±0.2 °C

S-300 Wireless T, %RH, Water Sensor with 64K Reading Datalogging Memory, Accuracies ΔRH = ±1.8 %RH, ΔT = ±0.2 °C

S-300 Wireless Temperature, Humidity and Moisture Content (WME) Sensor with 64K Reading Datalogging Memory has IP67 waterproof rating, addition of a push button to control sensor, options to use either built in terminals or cabled terminals for water sensing, and improved T/RH sensor with higher accuracy, faster response time and ability to read > 100% RH.
$114.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The S-300 is a wireless datalogging sensor capable of monitoring 2 channels of Temperature and RH and 2 channels of water presence.  Features include:

  • IP67 waterproof rating
  • Push button for initiating self test and erasing data storage memory
  • Improved T/RH sensor (A-100 cable required) with higher accuracy ΔRH = ±1.8 %RH, ΔT = ±0.2 °C, faster response time ability to read > 100% RH . Note, not currently compatible with A-1.
  • Improved durability with heavy duty 304 stainless steel pads.
  • Improved battery retention designed to better survive high impact drops
  • The S-300 has 2 plug in 3.5mm TRRS jacks (these are the same type of jacks used for cell phone audio jacks) each of which accepts a A-100 HumiSense plug in T/RH probe.
  • A water probe connects through a 3.5mm TRRS jack (A-200) along with the built-in screw terminal pads. This allows both local readings at the sensor's pads or cabling to a remote monitoring location with easy replacement of the probe if it wears out from repetitive use. Water presence is detected when water bridges the gap between the two terminals or between the 2 pads.
  • Auto wake and report on water detection
  • The industry standard 3.5mm audio jack allows for use of low cost off the shelf TRRS extension cables for monitoring T/RH in remote locations
  • FLASH memory storage for up to 64K (65,535) readings where a single reading includes two temperature/humidity pairs and WME data.  Readings are stored if there is no gateway detected within wireless range.  If a gateway is present, the sensor uploads all readings stored in memory and continues to send regular readings to the gateway.  Readings are stored in FLASH memory and are kept even with the battery removed.
  • Two mounting ears for easy mounting
  • Long life (15+ years possible), user replaceable, internal 3.6V Lithium Thionyl Chloride battery held captive by a screw on cover
  • compact form factor of 2.35 x 2.7 x 0.875 inches

Typical applications include:

  • Individual plumbing fixture leak detection
  • HVAC drain overflow

Comes With:

  • ER14505 3.6V Lithium Thionyl Chloride Battery INSTALLED
