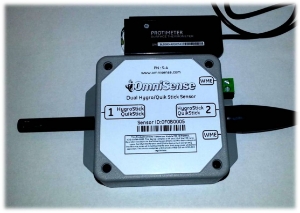

S-4 Wireless Dual Channel T, %RH, WME Sensor Compatible with GE Protimeter HygroStick and QuickStick

This sensor has the following key features:

• Two plug in ports for GE Protimeter MMS accessories such as their HygroStick, QuickStick and Surface Temperature Thermometers
• Each port measures Temperature (T), Relative Humidity (%RH), Dew Point (DP), Absolute Humidity (GPP or g/Kg) and the Temperature Differential between Port 1's Dew Point and Port 2's Temperature.
• The Temperature Differential or Tdiff can be used to monitor surfaces for condensation conditions.  In other words as Tdiff approaches 0 the surface temperature is nearing the ambient air's dew point indicating that condensation is likely to occur.  Using the Alarms feature of the monitoring web site you can set email and text message alerts for Tdiff and all other data readings the sensor collects.
• Single WME or Moisture Content channel with two connection options.  Connect either using the 3.5mm stereo jack which is compatible with GE Protimeter plug in probes or connect using  the supplied screw terminal block.
• The sensor operates from a long life Lithium battery with a typical battery life of 15+ years.  It can be permanently embedded into structures for long term building envelope performance monitoring or temporarily mounted for monitoring strcutural drying.
• Wireless and compatible with all OmniSense and GE HygroTrac gateways

Typical Applications include:

• Monitoring for Surface Condensation
• Monitoring Concrete Equilibrium RH to monitor the concrete drying process to determine if the concrete is ready for flooring or other coatings
• Long term structural performance monitoring
• water, mold or moisture damage forensics
• leak and moisture detection
• thermal performance monitoring
• monitor drying at disaster and flood recovery job site
• monitor lumber drying in kilns

Comes With:

• ER14505 3.6V Lithium Thionyl Chloride Battery
• Plug in WME Terminal Block

DOES NOT COME WITH PICTURED PLUG IN ACCESSORIES! THEY MUST BE PURCHASED SEPERATELY FROM A GE PROTIMETER DISTRIBUTOR.
