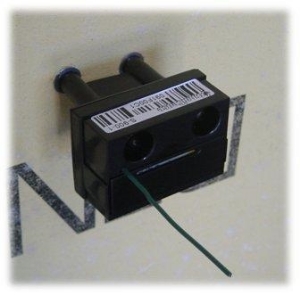

S-11 Wireless T, %RH, WME Sensor

The S-11 replaces our S-10 sensor which is now obsolete.

Standard accuracy (±0.4°C/±3.5%RH) sensor monitors Temperature, Humidity, Moisture Content (aka WME or Wood Moisture Equivalent), Dew Point and Grains Per Pound (aka Absolute Humidity). This sensor integrates a wireless transceiver, temperature sensor, humidity sensor, and pin type (resistance) moisture meter into a compact form factor of 2.25 x 1.5 x 1.0 inches.  The sensor operates from a long life Lithium battery with a typical battery life of 15+ years.  It can be permanently embedded into structures for long term building envelope performance monitoring or temporarily mounted for monitoring structural drying.  Also available in high accuracy (±0.3°C/±2.0%RH).  Status LED indicates sensor has powered on and also indicates sensor has communicated successfully with a gateway.  Typical applications include:

• Long term structural performance monitoring
• flat roof leak monitoring
• water, mold or moisture damage forensics
• data center air quality monitoring
• warehouse air quality monitoring
• leak and moisture detection
• thermal performance monitoring
• monitor drying at disaster and flood recovery job site
• monitor lumber drying in kilns
• monitor concrete equilibrium %RH
• monitor vacation homes for leaks or high humidity

Comes With:

• ER14505 3.6V Lithium Thionyl Chloride Battery

Documentation

Sensor Installation Manual
Installing S-11 Sensors on polyisocyanurate
Installing S-11 Sensors on DensGlass
